3D Printed Dental Pick Box

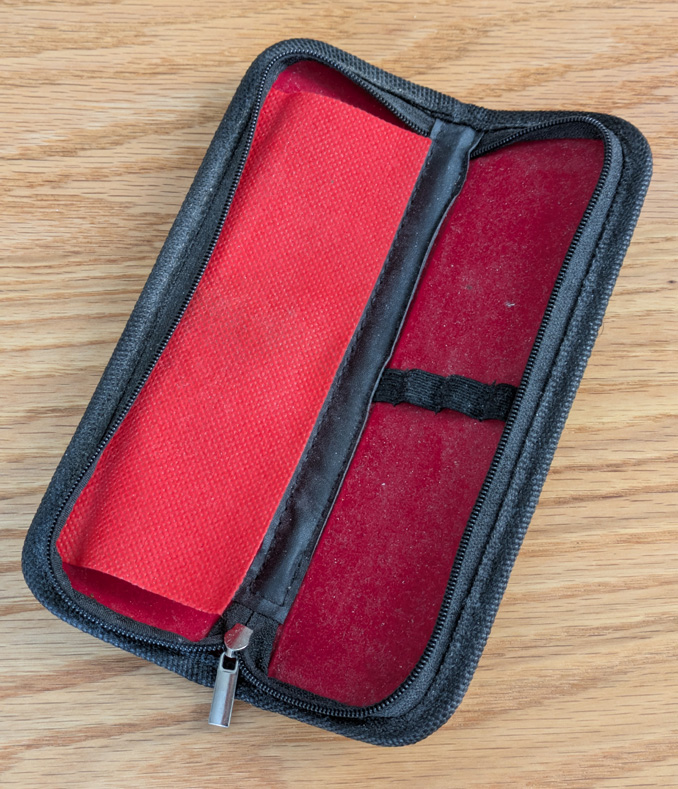

The picks came in a cloth/plastic case that closes with a zipper.

• The picks are held in with elastic loops which makes them annoying to remove.
• The case is too resistant to folding which makes it difficult to close.
• I can't tell what's inside it when it's closed.
• The velour liner collects dust.

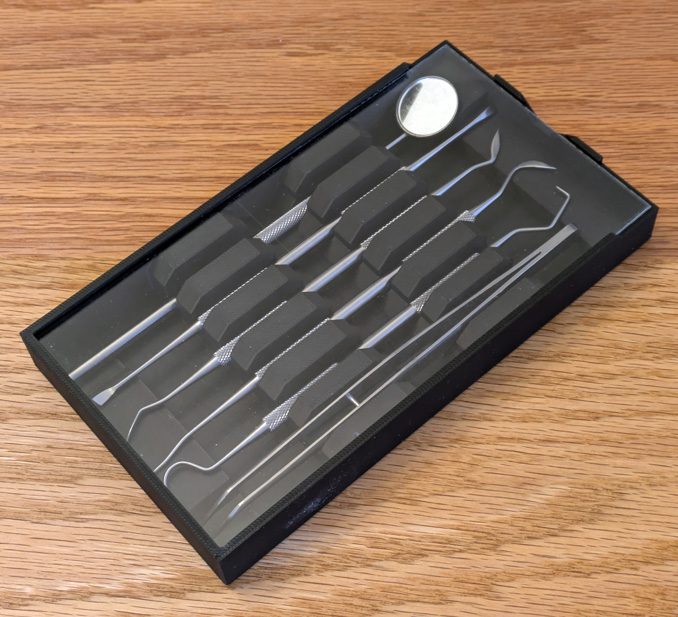

I designed a new case in SolveSpace. Source files included in download.

Key print settings:

• Brim: Mouse Ear, 8mm
• Infill: Gyroid, 20%
• No supports needed

A sheet of 0.8mm PET is used as a lid, cut to 96x176mm. Note that this material is sold on Amazon as 0.04", which would be 1mm, but I guess they had a great idea for saving 20% on material costs. I cut it using a t-square and utility knife, but it was difficult so you might want to look into other cutting solutions if you build something like this. I thought about buying a guillotine cutter but everything out there seems to be chinesium junk and I didn't want to drop $300-$700 on a rotatrim for one project.

It passes the inversion test, so it's good enough. Future improvements might be to make it stackable or gridfinity compatible.

Contains STL files and CAD files.
